| Home » Products » PVC Wires » Multi Core Flat Cable |

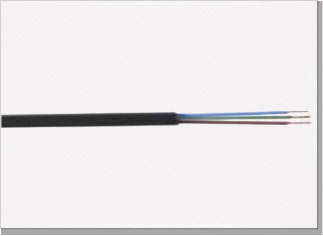

| MULTI CORE, PVC INSULATED, SHEATHED, FLAT CABLES WITH FLEXIBLE CONDUCTORS AS PER IEC-60228/IS-8130 CLASS -5, FOR MAX. RATED COND. TEMP. 70 /85 DEG C WITH RATED VOLTAGES UPTO 1100 VOLTS |
 |
|
 |
Specifications |
 |
|
|
Flexible Copper Conductors as per IEC-60228 / IS:- 8130-Class 5 |
Insulation:- PVC Compound with properties as per IS:- 5831 |
Suitable for 70°C, 85°C or 105°C as required |
Colour:- As per Customer’s Order |
Standard Length:- 100 mtr/ or as per Customer’s Order |
Rated Voltage Up to & Including 1100 Volts |
Breakdown Voltage: 6KV (rms) for 5 minutes |
Flammability: Period of burning of wire after removal of flame – < 60 sec |
Wire available in Size 0.50, 0.75, 1.00, 1.50, 2.50, 4.00sqmm |
|
|
 |
|
|
|
Applications |
|
|
|
Lighting, Fixed Wiring, Panel Wiring, Battery Cable, Electric Motors, Domestic Appliances & Housing / Industrial/ Commercial Establishments |
|
|
|
|
|
|
|
|
