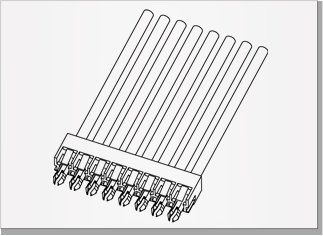

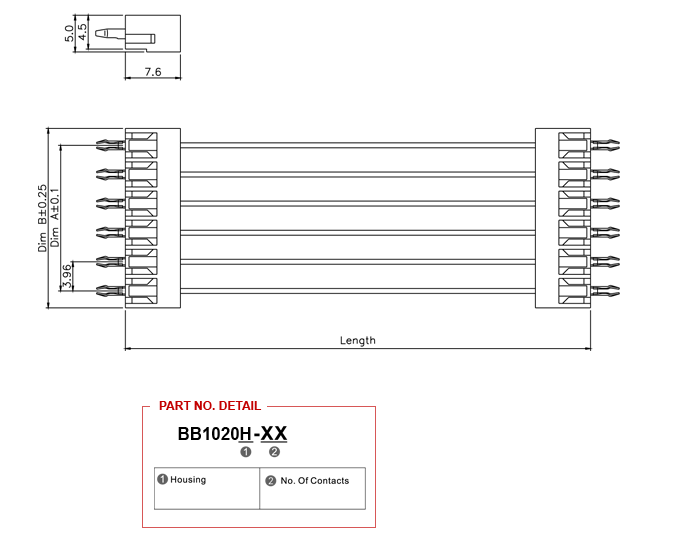

Pitch 3.96 mm

Pitch: 3.96mm

No. of Poles: 2 – 15 Pin

Current rating: 7.0A AC/DC

Voltage rating: 250 V AC/DC

Contact resistance: 10m ohm.max

Insulation resistance: 1000M ohm.Min

Withstanding voltage: 1500V AC for one minute

Operating temperature range: - 40°C to +105°C

Insulator: High Temp.Plastic (UL94V-0)

Contact: Phosphor Bronze

Plating: Tin Plated
