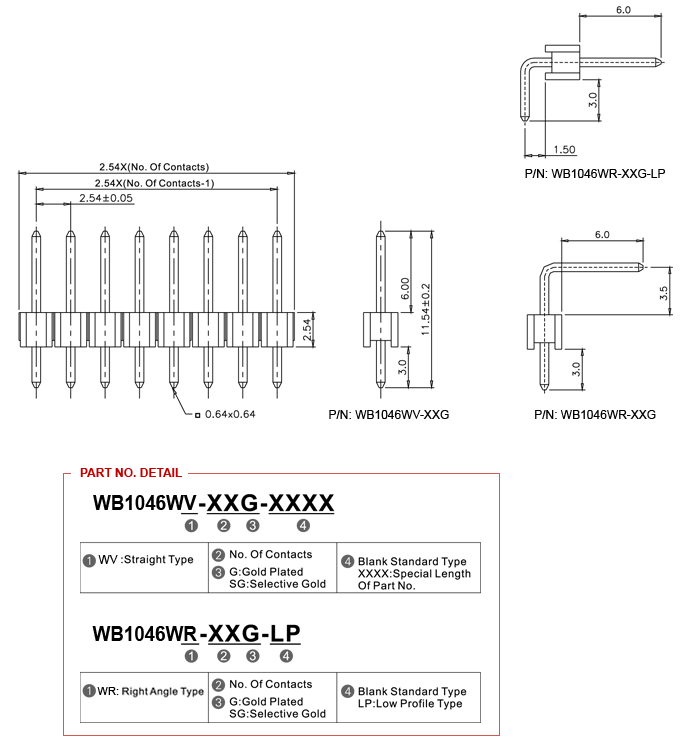

Pitch: 2.54mm

No. of Poles: 1 – 40 Pin

Current rating: 3.0A AC/DC

Voltage rating: 250 V AC/DC

Contact resistance: 20m ohm.max

Insulation resistance: 1000M ohm.Min

Withstanding voltage: 600V AC for one minute

Operating temperature range: - 40°C to + 105°C

Insulator: High Temp.Plastic (UL94V-0)

Contact: Copper Alloy

Plating: Gold/Selective Gold Plated
