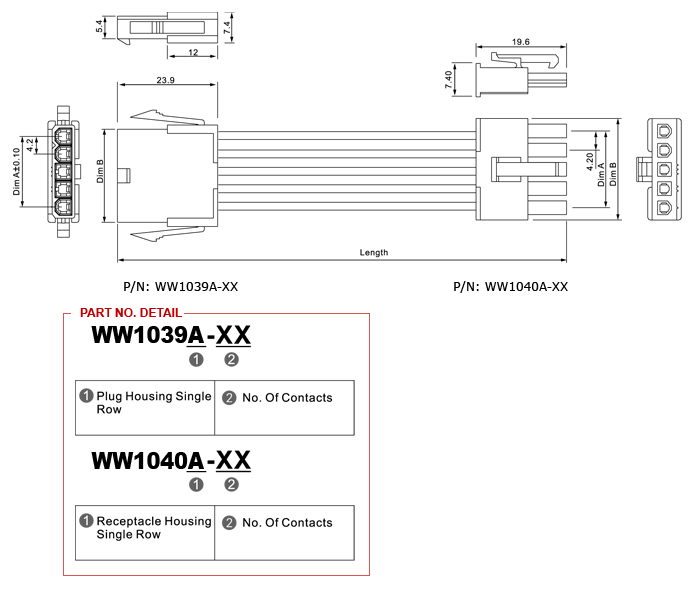

Pitch: 4.2mm

No. of Poles: 3, 4, 5

Current rating: 9.0A AC/DC

Voltage rating: 600 V AC/DC

Contact resistance: 10m ohm.max

Insulation resistance: 1000M ohm.Min

Withstanding voltage: 1500V AC for one minute

Operating temperature range: - 40°C to + 105°C

Insulator: High Temp.Plastic (UL94V-2)

Contact: Phosphor Bronze

Plating: Tin Plated
