ITPPL is your comprehensive source of conformal coating solutions..

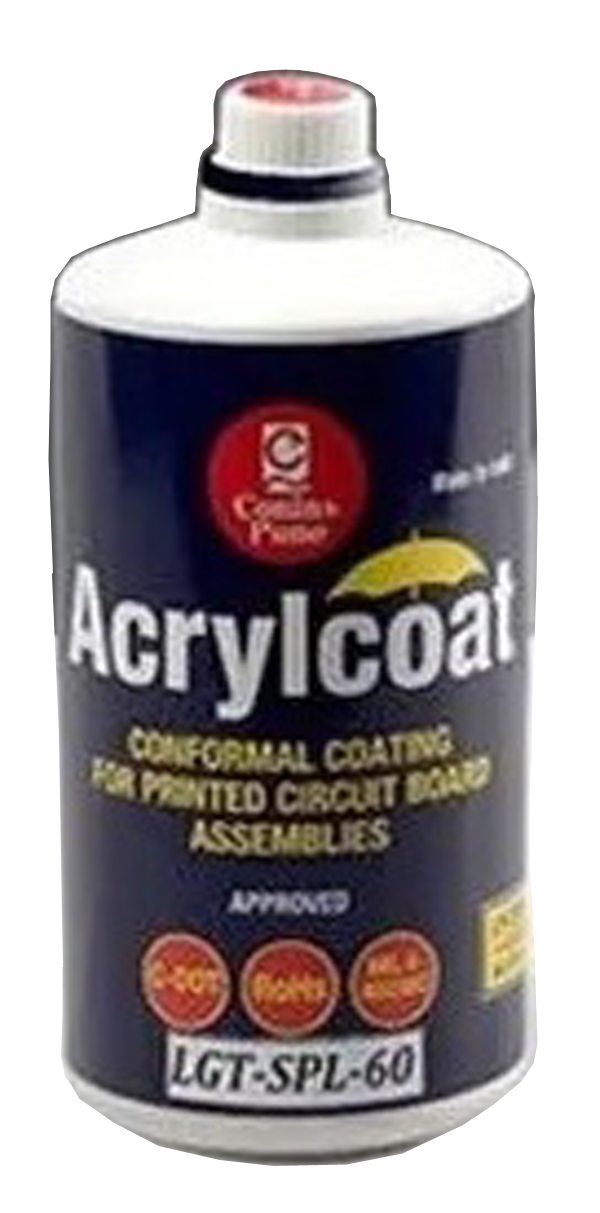

CONINS Acrylcoat LED-LGT-SPL-60 Conformal Coating is a ready-to-use, single-component formulation that requires no thinning. Known for its exceptional thickness, LGT-SPL-60 provides a clear yet highly durable protective layer on electronic circuits. It forms a strong bond with the surface, and once dried, achieves a coating thickness of over 200 microns.
Interested in our products?
We are here to help. Reach out to us anytime at 📞 +91-9810023414 or 📧 sales@itpindia.in. Whether your order is large or small, we will assist you.
Please visit our download page for complete CONINS Conformal Coating Catalogue.
| Brand | Conins Pune |
| Packaging Type | Can |
| Packaging Size | 1 L |
| Usage/Application | To Protect the Board and its Components from the Environment and Corrosion |
| Flash Point | Less than 0 Degree Celsius |
| Working Temp. | Minus 50 Degree Celsius to 1200 Degree Celsius |
| Appearance | Clear And Transparent And Smooth & Glossy |
| Viscosity of Lacquer | 60 secs Zahn Cup G1 @ 30 Degree Celsius |
| Curing Time | 24 Hours |
| Shelf Life | 12 Months |
| CTI Value (Comparative Tracking Index) | 600 |
| Insulation Resistance | 2.5 x 10 12 Ohm/cm |
| Dissipation factor | 0.01 |
| Di-electric strength | 25 kV/mm |
| Drying Time | Touch Dry Less Than 20 Minutes In Air Curing @ 60 Degree Celsius For 30 Minutes |
| Flammability | Self Extinguishing (Coating) Liquid Flammable |
| Dielectric Constant | 2.5 |
