YOI Relays: Your Reliable Partner for High-Performance Power Relays in India

ITPPL is your comprehensive source for all types of relay solutions..

As a trusted supplier of YOI relays and a wide variety of electronic components, we offer premium-quality products at competitive prices. Our portfolio includes telecom relays, power relays, automotive relays, high-current relays, sugar cube relays, and more—available in multiple specifications to match your application needs. Choose from a range of voltage levels, current ratings, shapes, and configurations to find the perfect fit for your requirements.

Interested in our products?

We are here to help. Reach out to us anytime at 📞 +91-9810023414 or 📧 sales@itpindia.in. Whether your order is large or small, we will assist you.

Please visit our download page for complete YOI Catalogue.

Power Relay

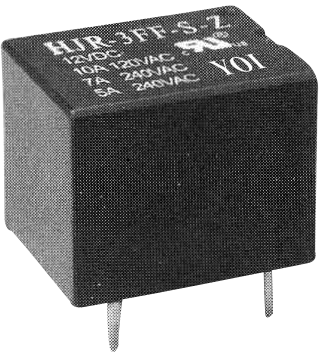

HJR-3FF
Relay UA

KEY FEATURES

  • ✔10A switching capability
  • ✔Small footprint
  • ✔Sealed type available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 19.2x15.5x15.5
Contact Form: 1H, 1Z
Max. Operating Current: 15A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 2,770VA/240W
Rated Voltage: 3-48VDC
Terminal Type: PCB



Enquire Now View Datasheet

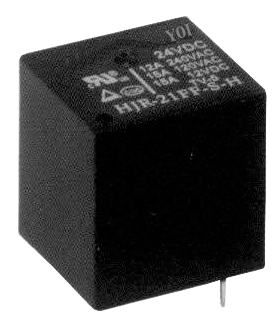

HJR-21FF
Relay UA

KEY FEATURES

  • ✔12A switching capability
  • ✔SPST-NO configuration
  • ✔Small footprint
  • ✔Sealed version available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 20.3x16.8x20.3
Contact Form: 1H, 1Z
Max. Operating Current: 15A
Minimum Load: 10mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 2,770VA/240W
Rated Voltage: 3-48VDC
Terminal Type: PCB


Enquire Now View Datasheet

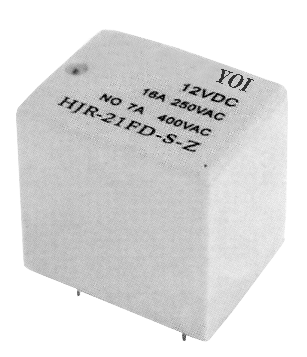

HJR-21FD
Relay UA

KEY FEATURES

  • ✔20A switching capability
  • ✔TV-8 120VAC
  • ✔Surge voltage up to 6KV
  • ✔Ambient temperature meets 105°C
  • ✔Product in accordances to IEC60335-1
  • ✔RoHS compliant

SPECIFICATION

Outline L*W*H (mm): 21.0x16.0x20.6
Contact Form: 1H/1Z
Max. Operating Current: 20A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 400VAC
Max. Operating Power: 4700VA
Rated Voltage: 3-48VDC
Terminal Type: PCB

Enquire Now View Datasheet
HJR-78F
Relay UA

KEY FEATURES

  • ✔20A switching capability
  • ✔Small size auto relay

SPECIFICATION

Outline L*W*H (mm): 15.7x12.3x14.0
Contact Form: 1H, 1Z
Max. Operating Current: 25A
Minimum Load: 10mA 5VDC
Max. Operating Voltage: 250VAC/16VDC
Max. Operating Power: 840VA/400W
Rated Voltage: 6-24VDC
Terminal Type: PCB




Enquire Now View Datasheet

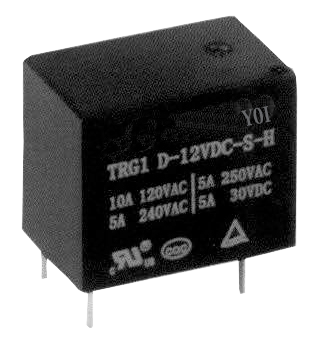

TRG1
Relay UA

KEY FEATURES

  • ✔10A switching capability
  • ✔SPST-NO & SPDT configuration
  • ✔Standard PC layout
  • ✔Sealed type available

SPECIFICATION

Outline L*W*H (mm): 18.2x10.2x15.5
Contact Form: 1H, 1Z
Max. Operating Current: 10A
Minimum Load: 10mA 5VDC
Max. Operating Voltage: 277VAC/30VDC
Max. Operating Power: 1H-D:1200VA/150W / 1H-L/1Z:600VA/90W
Rated Voltage: 3-48VDC
Terminal Type: PCB

Enquire Now View Datasheet

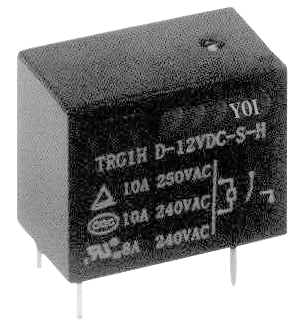

TRG1H
Relay UA

KEY FEATURES

  • ✔10A switching capability
  • ✔SPST-NO configuration
  • ✔Standard PC layout
  • ✔Sealed type available
  • ✔Surge resistance of 5000V

SPECIFICATION

Outline L*W*H (mm): 18.2x10.2x15.5
Contact Form: 1H
Max. Operating Current: 10A
Minimum Load: 10mA 5VDC
Max. Operating Voltage: 277VAC/30VDC
Max. Operating Power: 2500VA/300W
Rated Voltage: 3-24VDC
Terminal Type: PCB

Enquire Now View Datasheet

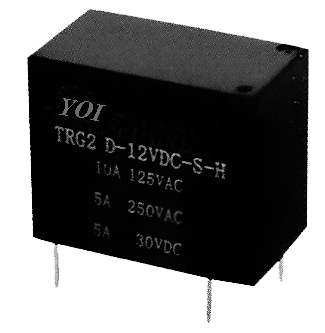

TRG2
Relay UA

KEY FEATURES

  • ✔10A switching capability
  • ✔Creepage distance: 8mm (both for 1 CO and NO)
  • ✔Clearance distance:No type 4.5mm, Nc type 4mm
  • ✔Subminiature standard PCB layout
  • ✔RoHS compliant

SPECIFICATION

Outline L*W*H (mm): 20.5x10.2x15.0
Contact Form: 1H,1Z
Max. Operating Current: 10A
Minimum Load: 10mA 5VDC
Max. Operating Voltage: 277VAC/30VDC
Max. Operating Power: 1250VA/150W
Rated Voltage: 3-48VDC
Terminal Type: PCB

Enquire Now View Datasheet

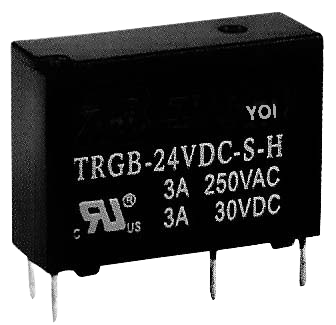

TRGB
Relay UA

KEY FEATURES

  • ✔Max. switching current 5A
  • ✔Surge strength 7KV

SPECIFICATION

Outline L*W*H (mm): 20.5x7.2x15.6
Contact Form: 1H
Max. Operating Current: 5A
Minimum Load: 10mA 5VDC
Max. Operating Voltage: 277VAC/30VDC
Max. Operating Power: 831VA/90W
Rated Voltage: 5-24VDC







Enquire Now View Datasheet
HJQ-15F
Relay UA

KEY FEATURES

  • ✔High power&low cost
  • ✔30A switching capability
  • ✔Less than 1W coil power
  • ✔Open type available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 32x27.4x19.3
Contact Form: 1H,1D,1Z
Max. Operating Current: 30A
Minimum Load: 500mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 7200VA/560W
Rated Voltage: 5-110VDC
Terminal Type: PCB


Enquire Now View Datasheet

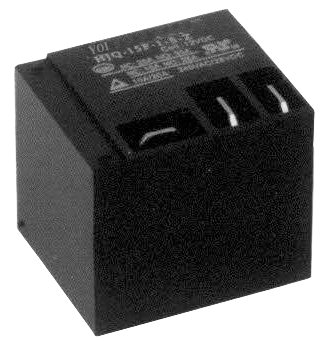

HJQ-15F-1
Relay UA

KEY FEATURES

  • ✔QC&PC terminals
  • ✔High dielectric strength 3,000VAC
  • ✔Optional flanged case for panel mounting
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 32x27.4x27.8
Contact Form: 1H,1D,1Z
Max. Operating Current: 30A
Minimum Load: 500mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 7200VA/560W
Rated Voltage: 5-110VDC
Terminal Type: PCB & Quick Connects


Enquire Now View Datasheet

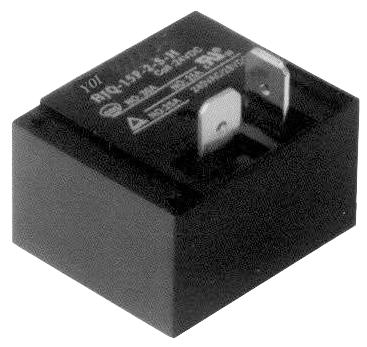

HJQ-15F-2
Relay UA

KEY FEATURES

  • ✔QC&PC terminals
  • ✔High dielectric strength 3,000VAC
  • ✔Optional flanged case for panel mounting
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 32x27.4x19.3
Contact Form: 1H,1D,1Z
Max. Operating Current: 30A
Minimum Load: 500mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 6000VA/560W
Rated Voltage: 5-48VDC
Terminal Type: PCB & Quick Connects


Enquire Now View Datasheet

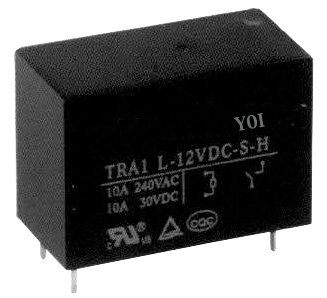

TRA1
Relay UA

KEY FEATURES

  • ✔10A switching capability
  • ✔SPST-NO & SPDT configuration
  • ✔Small footprint
  • ✔Sealed type available
  • ✔Transparent sealed available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 29.4x13x20.6
Contact Form: 1H, 1Z
Max. Operating Current: 12A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 2500VA/300W
Rated Voltage: 3-48VDC
Terminal Type: PCB

Enquire Now View Datasheet

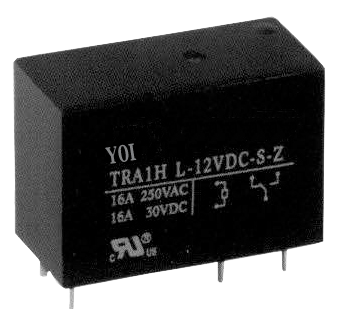

TRA1H
Relay UA

KEY FEATURES

  • ✔16A switching capability
  • ✔SPST-NO&SPDT configuration
  • ✔Small footprint
  • ✔Sealed version available
  • ✔Transparent sealed available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 29.4x13x20.6
Contact Form: 1H/1Z
Max. Operating Current: 16A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 4000VA/480W
Rated Voltage: 3-48VDC
Terminal Type: PCB

Enquire Now View Datasheet

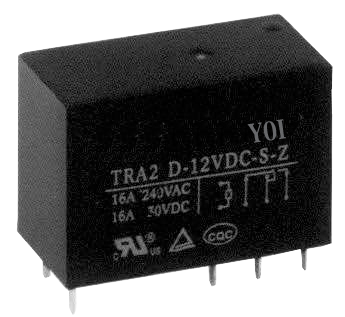

TRA2
Relay UA

KEY FEATURES

  • ✔16A switching capability
  • ✔SPST-NO & SPDT configuration
  • ✔5kv dielectric between coil and contacts
  • ✔Transparent sealed available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 29.4x13x20.6
Contact Form: 1H, 1Z
Max. Operating Current: 20A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 4800VA/480W
Rated Voltage: 3-48VDC
Terminal Type: PCB

Enquire Now View Datasheet
TRA3
Relay UA

KEY FEATURES

  • ✔Creepage distance 8.0mm Min
  • ✔Au-clad contact available
  • ✔Transparent sealed available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 29.4x13x20.6
Contact Form: 2H, 2Z
Max. Operating Current: 8A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 1250VA/240W
Rated Voltage: 3-48VDC
Terminal Type: PCB


Enquire Now View Datasheet

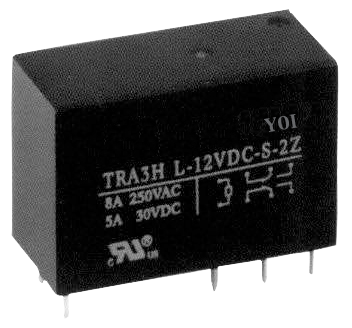

TRA3H
Relay UA

KEY FEATURES

  • ✔Creepage distance: 8.0mm Min
  • ✔Au-clad contact available
  • ✔Transparent sealed available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 29.4x13x20.6
Contact Form: 2H/2Z
Max. Operating Current: 8A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 2000VA/240W
Rated Voltage: 3-48VDC
Terminal Type: PCB

Enquire Now View Datasheet

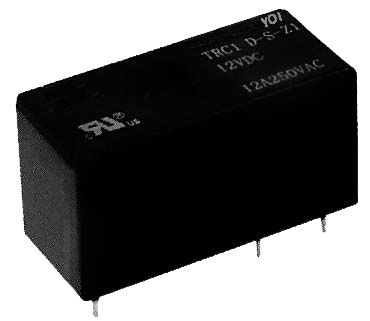

TRC1
Relay UA

KEY FEATURES

  • ✔Creepage distance: 10mm
  • ✔Au-clad contact available
  • ✔Transparent sealed available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 29x12.7x15.7
Contact Form: 1H/1Z
Max. Operating Current: 12A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 440VAC/125VDC
Max. Operating Power: 3000VA
Rated Voltage: 5-60VDC/24-230VAC
Terminal Type: PCB

Enquire Now View Datasheet

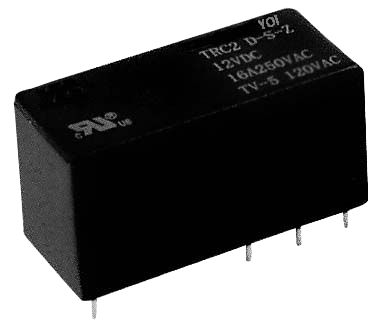

TRC2
Relay UA

KEY FEATURES

  • ✔Creepage distance: 10mm
  • ✔Au-clad contact available
  • ✔Transparent sealed available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 29x12.7x15.7
Contact Form: 1H/1Z
Max. Operating Current: 16A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 440VAC/125VDC
Max. Operating Power: 4000VA
Rated Voltage: 5-60VDC/24-230VAC
Terminal Type: PCB

Enquire Now View Datasheet

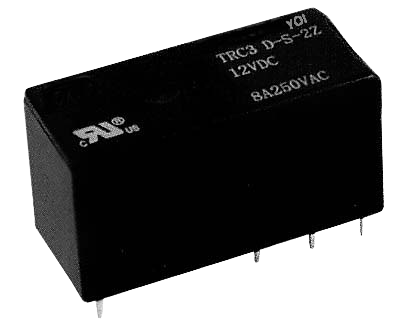

TRC3
Relay UA

KEY FEATURES

  • ✔Creepage distance: 10mm
  • ✔Au-clad contact available
  • ✔Transparent sealed available
  • ✔Class B/F available

SPECIFICATION

Outline L*W*H (mm): 29x12.7x15.7
Contact Form: 2H/2Z
Max. Operating Current: 8A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 440VAC/125VDC
Max. Operating Power: 2000VA
Rated Voltage: 5-60VDC/24-230VAC
Terminal Type: PCB




Enquire Now View Datasheet

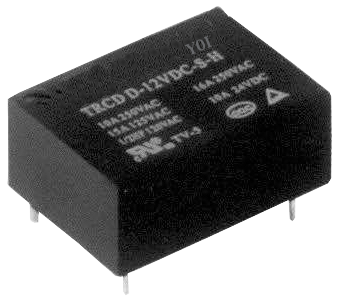

TRCD
Relay UA

KEY FEATURES

  • ✔Low profile(10mm), 15Amp, switching capacity.
  • ✔1 Form A contact arrangement.
  • ✔Sensitive 200mW coil (250mW on 48VDC coil).
  • ✔Immersion cleanable, sealed version available.

SPECIFICATION

Outline L*W*H (mm): 23x16.1x10.2
Contact Form: 1H
Max. Operating Current: 16A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/125VDC
Max. Operating Power: 4000VA/480W
Rated Voltage: 3-48VDC


Enquire Now View Datasheet

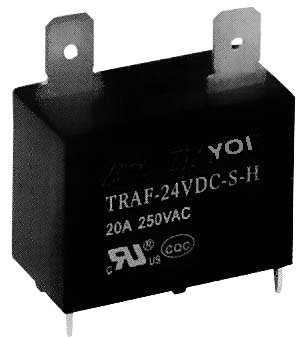

TRAF
Relay UA

KEY FEATURES

  • ✔Ideal for motor switching in appliances and HVAC
  • ✔20A switching capability
  • ✔Designed for high inrush compressor loads
  • ✔SSemi-sealed construction
  • ✔Sealed version available

SPECIFICATION

Outline L*W*H (mm): 30.5x16.0x23.5
Contact Form: 1H
Max. Operating Current: 20A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC
Max. Operating Power: 5000VA
Rated Voltage: 5-48VDC
Terminal Type: PCB & Quick Connects

Enquire Now View Datasheet

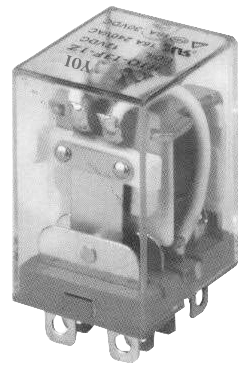

HJQ-13F-1C
Relay UA

KEY FEATURES

  • ✔16A transfer contacts
  • ✔Different dust-proof cover, different layout

SPECIFICATION

Outline L*W*H (mm): 28x21.5x35
Contact Form: 1Z
Max. Operating Current: 20A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 4000VA/480W
Rated Voltage: 5-110VDC, 6-240VAC
Terminal Type: PCB & Quick Connects

Enquire Now View Datasheet

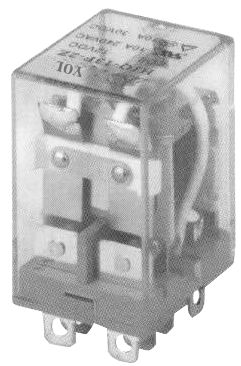

HJQ-13F-2C
Relay UA

KEY FEATURES

  • ✔10A transfer contacts
  • ✔Different dust-proof cover, different layout

SPECIFICATION

Outline L*W*H (mm): 28x21.5x35
Contact Form: 2Z
Max. Operating Current: 10A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 2500VA/300W
Rated Voltage: 5-110VDC, 6-240VAC
Terminal Type: PCB & Quick Connects

Enquire Now View Datasheet

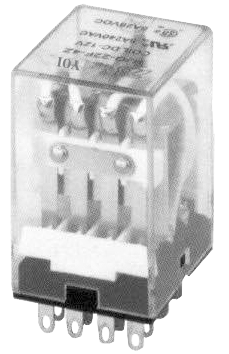

HJQ-22F (18F)
Relay UA

KEY FEATURES

  • ✔1.2 to 3 pole configuration

SPECIFICATION

Outline L*W*H (mm): 28x21.5x35
Contact Form: 2Z, 3Z
Max. Operating Current: 7A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 240VAC/30VDC
Max. Operating Power: 1680VA/210W
Rated Voltage: 5-110VDC, 6-240VAC
Terminal Type: PCB & Quick Connects


Enquire Now View Datasheet
HJQ-22F-4
Relay UA

KEY FEATURES

  • ✔4 pole configurations
  • ✔Au-clad contact available

SPECIFICATION

Outline L*W*H (mm): 28x21.5x35
Contact Form: 4Z
Max. Operating Current: 5A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 240VAC/28VDC
Max. Operating Power: 1200VA/140W
Rated Voltage: 5-110VDC, 6-240VAC
Terminal Type: PCB & Quick Connects

Enquire Now View Datasheet
