ITPPL is your comprehensive source for all types of Solar Connectors..
Driven by a commitment to a greener economy and sustainable energy, ELCOM leads the way in designing and manufacturing premium solar components, including PV cable connectors, branch connectors, module junction boxes, and PV wire harness solutions. These products are widely used across diverse solar power applications and are TUV-certified, meeting IES standards.
Interested in our products?
We are here to help. Reach out to us anytime at 📞 +91-9810023414 or 📧 sales@itpindia.in. Whether your order is large or small, we will be happy to assist you.
Please visit our download page for complete ELCOMS Electronic Hardware Components Catalogue.

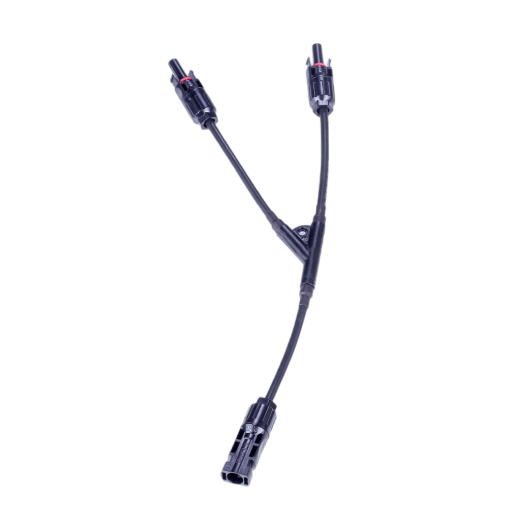

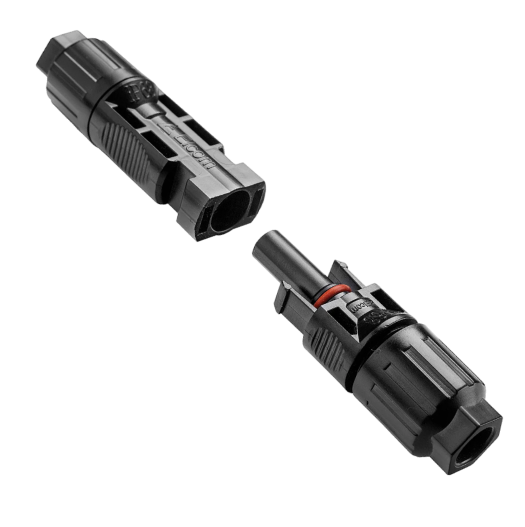

Elcom's Solar Connectors Product Range includes PV Branch Connector and PV Cable Connector
Elcom's high-efficiency solar connectors, featuring an industry-leading ≤0.20 ohms contact resistance, maximize energy output, optimize power generation, and ensure consistent, reliable performance for your solar panels.
Designed to excel under extreme conditions, our 54A Connector delivers uncompromising performance, withstanding temperatures up to 125°C while effortlessly handling currents of 54A. Experience unrivaled reliability and seamless power transmission, making it the perfect solution for demanding solar applications in challenging high-temperature environments.
ELCOM is the only Indian Manufacturer who has developed its solar connector with TUV certificate for 1500 VDC - as per the latest version of IEC 62852:2014 standard. We have received a TUV certificate for the PV cable connector ,panel mount, branch connector , which can operate at 1500 V DC.1
Elcom's Solar Connector features a snap-in safety locking mechanism and an audible click. With over 40 years of expertise in electronic components manufacturing, we have created a connector that provides a secure and stable connection.
Elcom's high-efficiency Solar Connectors, featuring an industry-leading ≤0.20 ohms contact resistance, maximize energy output, optimize power generation, and ensure consistent, reliable performance for your solar panels.
Elcom's Solar Connectors are suitable for use with both crystalline and thin-film panel manufacturers and system installers, providing versatility in various solar applications.
The connectors have a high degree of protection with an IP68 rating, safeguarding against dust and water ingress.The connectors utilize copper with silver plating as the contact material, ensuring optimal conductivity.
The connectors can withstand a wide operating temperature range from -40°C to +90°C, with an upper limiting temperature of 125°C, ensuring reliable performance in various environmental conditions.
The connectors are compatible with cable sizes of 2.5 sq.mm, 4 sq.mm, and 6 sq.mm, accommodating different solar installation requirements.
The connectors require an insertion force of ≤ 50N and a withdrawal force of ≥ 100N, ensuring ease of use and a secure connection.
The connectors utilize silicone material for effective sealing, providing protection against moisture and environmental elements.
| Brand | ELCOM |
| Catagory | PV CABLE CONNECTOR / BRANCH CONNECTOR / PLUS CONNECTOR, T CONNECTOR, Y CONNECTOR |
| Series | ESC-4-X, ESC-4-UW-X, ESC-4-PM-X / ESC-BC-S1P2, ESC-BC-S2P1 / ESP-PC-X SERIES, ESP-TC SERIES, ESP-YC |
| Type | Ø4mm PV Connector / Ø4mm 2 Way PV |
| Rated Current | 4 & 6 sqmm 30A 2.5 sqmm 25A |
| Rated Voltage | 1500V DC |
| Contact Resistance | ≤0.35mOhms / ≤0.5mOhms |
| Operating Temperature | -40°C TO +85°C |
| Approvals | TUV |
| Degree of protection(Mated) | IP68 (IEC 60529) / IP67 |
| Reference Standard | IEC 62852:2014 |
*For more details of individual parts under this Solar Connectors category, please click on the below View Datasheet button.
