YOI Relays: Your Reliable Partner for High-Performance High Current Relays in India

ITPPL is your comprehensive source for all types of relay solutions..

As a trusted supplier of YOI relays and a wide variety of electronic components, we offer premium-quality products at competitive prices. Our portfolio includes telecom relays, power relays, automotive relays, high-current relays, sugar cube relays, and moreβ€”available in multiple specifications to match your application needs. Choose from a range of voltage levels, current ratings, shapes, and configurations to find the perfect fit for your requirements.

Interested in our products?

We are here to help. Reach out to us anytime at πŸ“ž +91-9810023414 or πŸ“§ sales@itpindia.in. Whether your order is large or small, we will assist you.

Please visit our download page for complete YOI Catalogue.

High Current Relay

TRA6H
Relay UA

KEY FEATURES

  • βœ”16A switching capability
  • βœ”Sealed version available
  • βœ”Transparent sealed available
  • βœ”Class B/F available
  • βœ”Conform to RoHS,ELV directive

SPECIFICATION

Contact Form: 1H, 1Z
Max. Operating Current: 16A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 4000VA/480W



Enquire Now View Datasheet
TRG1N
Relay UA

KEY FEATURES

  • βœ”16A switching capability
  • βœ”SPST-NO configuration/Standard PC layo
  • βœ”Dielectric strength 4kV(between coil and contacts)
  • βœ”Products which coincident with TV-8 products are available
  • βœ”Conform to RoHS,ELV directive

SPECIFICATION

Contact Form: 1H
Max. Operating Current: 16A
Minimum Load: 100mA 5VDC
Max. Operating Voltage: 250VAC
Max. Operating Power: 4000VA

Enquire Now View Datasheet

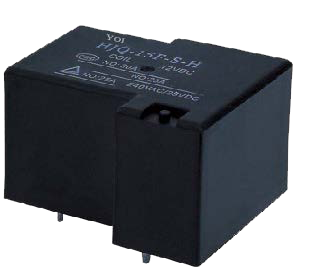

HJQ-15FT
Relay UA

KEY FEATURES

  • βœ”High power&low cost
  • βœ”40A switching capability
  • βœ”Less than 1W coil power
  • βœ”Open sealed type available
  • βœ”Class B/F available
  • βœ”Conform to RoHS,ELV directive

SPECIFICATION

Contact Form: 1H/1D/1Z
Max. Operating Current: 30A
Minimum Load: 500mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 7200VA/560W


Enquire Now View Datasheet
HJQ-15F-1T
Relay UA

KEY FEATURES

  • βœ”High power&low cost
  • βœ”40A switching capability
  • βœ”Less than 1W coil power
  • βœ”Open sealed type available
  • βœ”Class B/F available
  • βœ”Conform to RoHS,ELV directive

SPECIFICATION

Contact Form: 1H/1D/1Z
Max. Operating Current: 30A
Minimum Load: 500mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 7200VA/560W



Enquire Now View Datasheet
HJQ-15F-2T
Relay UA

KEY FEATURES

  • βœ”High power&low cost
  • βœ”40A switching capability
  • βœ”Less than 1W coil power
  • βœ”Open sealed type available
  • βœ”Class B/F available
  • βœ”Conform to RoHS,ELV directive

SPECIFICATION

Outline L*W*H (mm): 32.4x2.5x20
Contact Form: 1H/1D/1Z
Max. Operating Current: 30A
Minimum Load: 500mA 5VDC
Max. Operating Voltage: 250VAC/30VDC
Max. Operating Power: 7200VA/560W
Rated Voltage: 5-110VDC
Terminal Type: PCB

Enquire Now View Datasheet

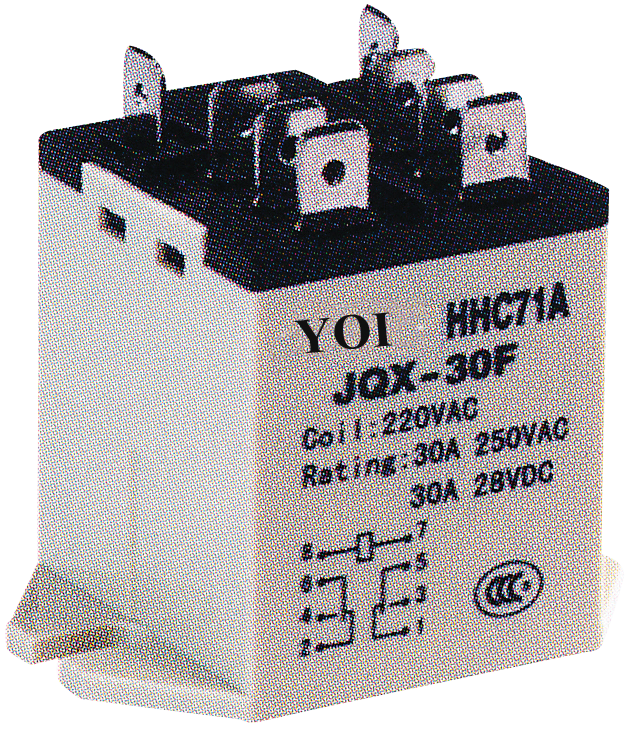

JQX-30F
Relay UA

KEY FEATURES

  • βœ”Small size, light weight, low coil power consumption, high contact load, strong anti-shock, high reliability, long life.
  • βœ”Suitable for industrial machine, electrical equipment, electrical watt-hour meter, air conditioner household applications etc.
  • βœ”PCB mounting Pins.
  • βœ”UL & CSA approved

SPECIFICATION

Outline L*W*H (mm): 43 x 35.5 x 48
Contact Form: 1Z, 1H, 1D, 2Z, 2H, 2D
Contact Rated load: 30A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance: β‰₯100M Ξ© (500VDC)

Enquire Now View Datasheet

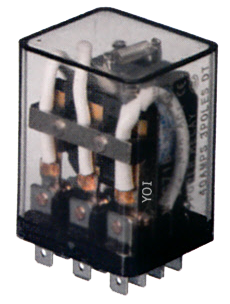

JQX-38F
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 55.5 x 30 x 37.5
Contact Form: 2Z, 2H, 2D, 3Z, 3H, 3D
Contact Rated load: 40A, 50A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance: β‰₯200M Ξ© (500VDC)

Enquire Now View Datasheet

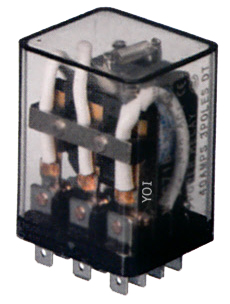

JQX-38F (Mini)
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 57.3 x 37.2 x 40.9
Contact Form: 2Z, 2H, 2D, 3Z, 3H, 3D
Contact Rated load: 40A, 50A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance: β‰₯500M Ξ© (500VDC)

Enquire Now View Datasheet

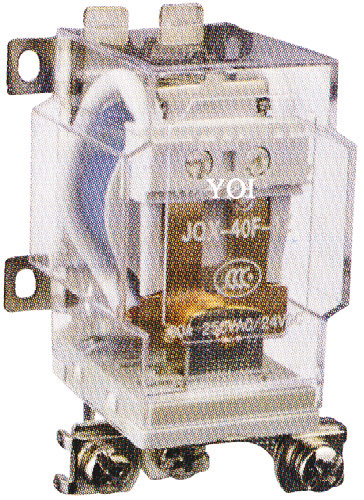

JQX-40F-1Z
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 60 x 46 x 46
Contact Form: 1Z, 1H, 1D
Contact Rated load: 50A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance: β‰₯500M Ξ© (500VDC)

Enquire Now View Datasheet

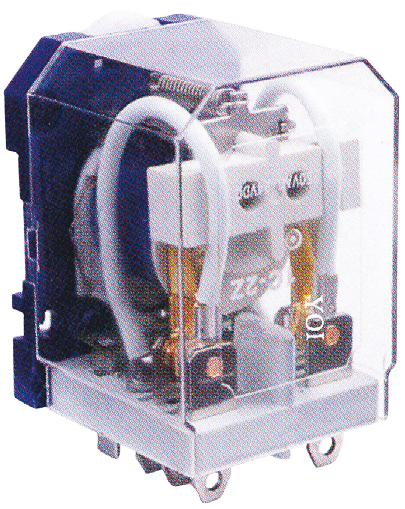

JQX-40F-2Z
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 68 x 47 x 60
Contact Form: 2Z, 2H, 2D
Contact Rated load: 40A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance: β‰₯500M Ξ© (500VDC)

Enquire Now View Datasheet

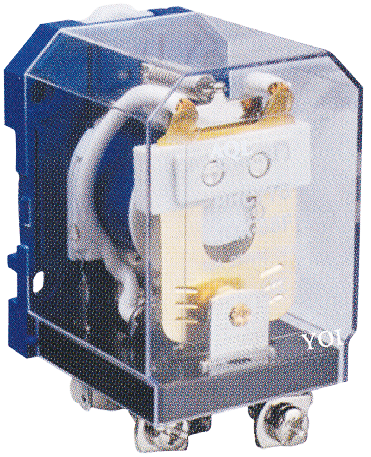

JQX–58F
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 68 x 47 x 60
Contact Form: 1Z, 1H, 1D
Contact Rated load: 60A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance: β‰₯500M Ξ© (500VDC)

Enquire Now View Datasheet

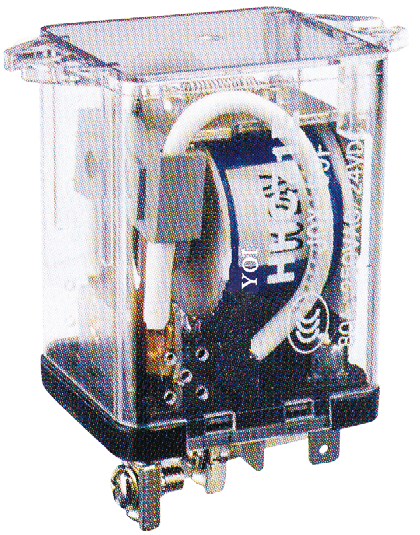

JQX-59F-1Z
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 66.5 x 47 x 72
Contact Form: 1Z, 1H, 1D
Contact Rated load: 80A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance: β‰₯500M Ξ© (500VDC)

Enquire Now View Datasheet

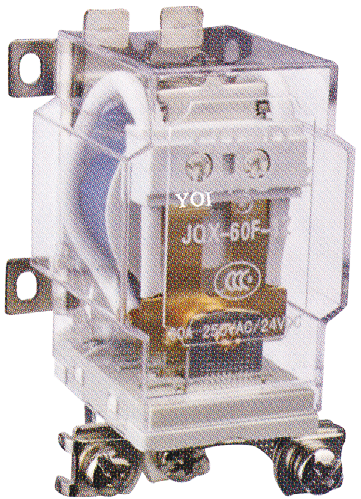

JQX-60F
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 60.2 x 45 x 46
Contact Form: 1Z, 1H, 1D
Contact Rated load: 60A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance: β‰₯500M Ξ© (500VDC)

Enquire Now View Datasheet

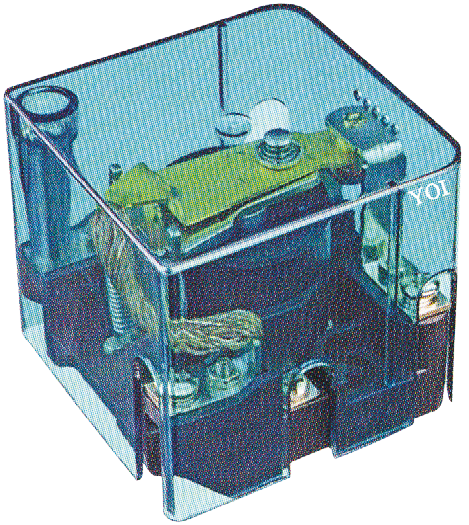

JQX-62F-1Z
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 67 x 67 x 60.5
Contact Form: 1Z, 1H, 1D
Contact Rated load: 100A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance: β‰₯500M Ξ© (500VDC)

Enquire Now View Datasheet

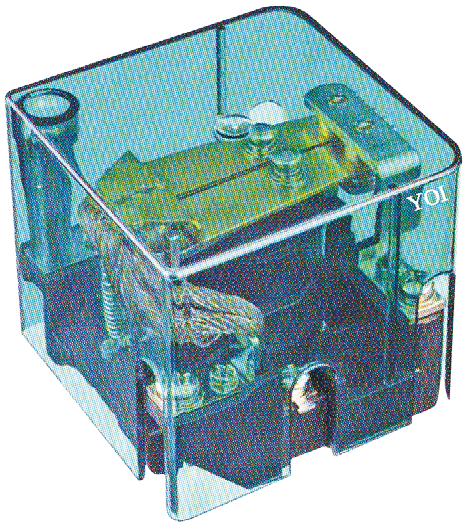

JQX-62FS
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 67 x 67 x 60.5
Contact Form: 1Z, 1H, 1D
Contact Rated load: 120A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance:β‰₯500M Ξ© (500VDC)

Enquire Now View Datasheet

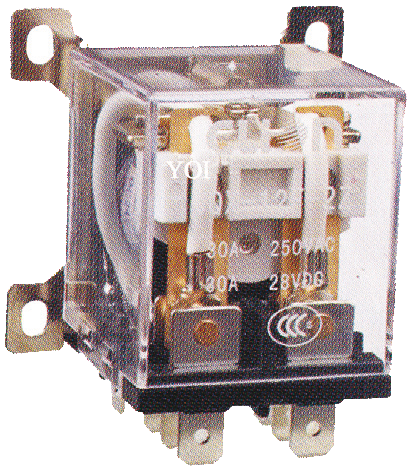

JQX-12F
Relay UA

KEY FEATURES

  • βœ”Low coil power consumption
  • βœ”High contact load
  • βœ”Strong anti-shock high reliability

SPECIFICATION

Outline L*W*H (mm): 48 x 45.8 x 38.5
Contact Form: 1Z, 1H, 1D, 2Z, 2H, 2D
Contact Rated load: 30A
Contact Resistance: ≀100m Ξ©
Max. Switching Voltage: 240VAC/28VDC
Nominal voltage(DC): DC6V ~ 220V
Nominal voltage(AC): AC6V ~ 380V
Insulation resistance:β‰₯100M Ξ© (500VDC)

Enquire Now View Datasheet
