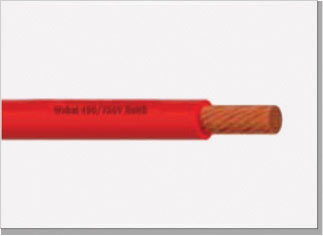

HOOK UP WIRE: SINGLE CORE, PVC INSULATED, UNSHEATHED, WIRES WITH FLEXIBLE CONDUCTORS

Flexible Copper Conductors

Insulation:- PVC Compound with properties as per IS:- 5831

Suitable for 70°C, 85°C or 105°C as required

Colour:- Black, Brown, Red, Orange, Yellow,Green, Blue, Violet, Grey & White or as per Customer's special requirment

Standard Length:- 500 mtr/ or as per Customer’s Order

Rated Voltage Up to & Including 1100 Volts

Breakdown Voltage: 3KV (rms) for 1 minute

Flammability: Period of burning of wire after removal of flame – < 60 sec

Wire available in Size 7/38, 9/38, 11/38, 14/38, 7/36, 9/36, 12/36, 14/36, 7/36 PTT

RoHS Compliant



Multi strand, Annealed, Bare or Tin Coated Electrolytic Grade Copper



Used in Electronics,Lighting, Entertainment, Music, PA Audio Systems, PCB Assemblies with Lithium Batteries, LED Panels etc.
