Home » Products » PVC Wires » Single core Wire 0.5-25 Sqmm-BIS certified

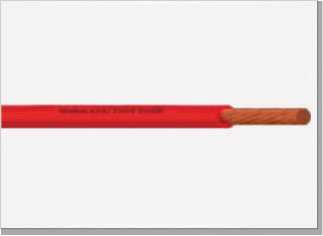

0.5-25 SQMM SINGLE CORE WIRE, PVC INSULATED, UNSHEATHED, CABLES WITH FLEXIBLE CONDUCTORS

Flexible Copper Conductors as per IEC-60228/ IS:- 8130-Class 5

Insulation:- PVC Compound with properties as per IS:- 5831

Suitable for 70°C, 85°C or 105°C as required

Colour:- Red, Black, Blue, Green, Yellow, Grey as per Customerís requirement.

Standard Length:- 100 mtr/ or as per Customerís Order

Rated Voltage Up to & Including 1100 Volts

Breakdown Voltage: 6KV (rms) for 5 minutes

Flammability: Period of burning of wire after removal of flame Ė < 60 sec

Wire available in Size sqmm 0.50, 0.75, 1, 1.50, 2.50, 4.00, 6.00, 10.00, 16.00, 25.00sqmm

RoHS Compliant, IS 694 Certified



Multi strand, Annealed, Bare Electrolytic Grade Copper



Used in Home, Kitchen Appliances, Lighting, Entertainment, Music, PA Audio Systems Heating & Air conditioning systems, Machine and Instrument Panels
