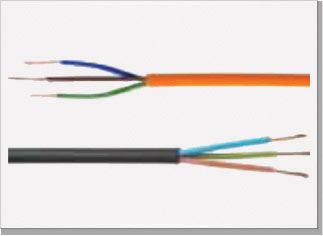

MULTI CORE, PVC INSULATED, SHEATHED, CABLES WITH FLEXIBLE CONDUCTORS |
![](images/multi-core-wire-title.png) |
|
![](images/wire2wire-corner-l.gif) |
Specifications |
![](images/wire2wire-corner-r.gif) |
|
![](images/spacer.gif) |
Flexible Copper Conductors as per IEC-60228 / IS:- 8130-Class 5 |
Insulation:- PVC Compound with properties as per IS:- 5831 |
Suitable for 70°C, 85°C or 105°C as required |
Colour:- As per Customer’s Order |
Standard Length:- 100 mtr/ or as per Customer’s Order |
Rated Voltage Up to & Including 1100 Volts |
Breakdown Voltage: 6KV (rms) for 5 minutes |
Flammability: Period of burning of wire after removal of flame – < 60 sec |
Wire available in Size 0.50, 0.75, 1.00, 1.50, 2.50, 4.00sqmm |
Avaiable in Round / Flat Shapes |
RoHS Compliant, IS 694 Certified |
|
|
