PRODUCTS - PVC WIRES

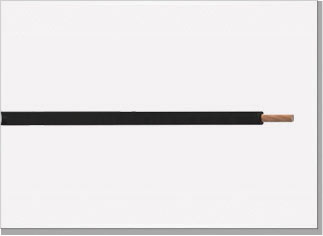

FLRYB wires

Home » Products » PVC Wires » FLRYB Wires
LOW TENSION ELECTRIC WIRES 60V DC/25 VAC AS PER ISO-6722-1, 2011 (FORMERLY KNOWN AS 72551)

Flexible Copper Conductors

Insulation:- Plasticised PVC Compound as per IS0-6722-1, 2011

Suitable for temp rating (-) 40°C to (+) 100°C as required

Colour:- As per Customerís Order

Standard Length:- 100 mtr/ or as per Customerís Order

Rated Voltage: 60 V DC or 25 V AC

Breakdown Voltage: 60 V Cable:- 3 KV < 0.5 sq mm & 5 KV > & incl -0.5 sq mm

Flammability: Period of burning of wire after removal of flame Ė Max 70 sec

Wire available in Size 0.22, 0.25, 0.35, 0.50, 0.75, 1.00, 1.50, 2.50, 4.0, 6.0, 8.0, 10.0, 16.0, 25.0 sqmm

RoHS Compliant, IS 694 Certified


Multi strand, Annealed, Bare Electrolytic Grade Copper


Low Tension Electric Wire for Automobiles Used in Motor Vehicles Harnesses, and instrument panel circuits
